specs and configurations




in.clear cell




Environmental:

  • Operating temperature: 32˚F (0˚C) to 122˚F (50˚C)
  • Storage temperature: -13°F (-25°C) to 185°F (85°C)
  • Humidity: up to 85% RH, non condensing
  • Water Ingress protection: IPx5

in.clear electrical specifications:

  • Input rating : 230-240 V nominal
    (+ 5/- 10 %)
  • Frequency: 50/60 Hz nominal
    (+ 1. 5 / -1.0 Hz).
  • Operating current: 0.09 A (90mA)
  • in.clear flow rate: 3 US GPM (11.3 l/min) minimum flow rate (required) / 40 US GPM (151 l/min) maximum flow allowed.

Mechanical:

  • Weight: 5.0 lbs (2.25 kg)

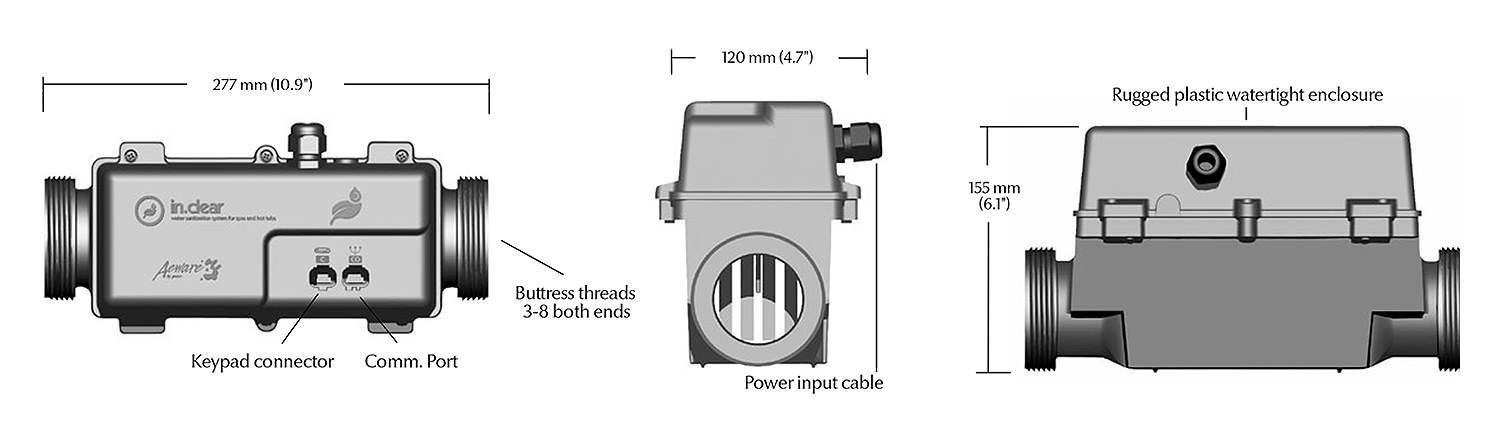

  • Dimensions (W x H x D): Chassis: 10.875’’ x 6.046’’ x 4.682’’ (276.2mm x 153.6mm x 119mm)




North American Certifications:

  • UL 1081 sixth Ed, UL 1563 Fifth Ed.
  • File: E305676
  • CSA No. 22.2 - 108-01 4th Ed.
  • EPA Reg. No. 8622-69-73578
  • EPA Reg. No. 69470-wv-2
  • Registration No. 29628 Pest Control Product Act - Canada

European Certifications:

  • EN/IEC 60335 - 2 - 60: 2003/2002
  • EN/IEC 60335 - 1: 2002/2001
    (incl. Corr. & Am. up to 2006)
  • EN 55014-1
  • EN 55014-2
  • EN 61000-3-2
  • EN 61000-3-3

Australia / New Zealand:

  • AS/NZS 60 335.2.60: 2006+A1



dedicated in.k200 keypad





Keypad Environmentals:

  • Storage temperature: -22˚F (–30˚C) to 158˚F (70˚C)
  • Operating temperature: -4˚F (–20˚C) to 140˚F (60˚C)
  • Humidity: 100% condensing

Keypad Mechanical Specs:

  • Weight: 0.41 kg (0.9 lbs)
  • Front panel dimensions (W x H x D): 4.75" x 2" x 1.7" (120 mm x 51 mm x 43 mm)
  • Soft gasket
  • Standards: UV resistance (ASMT D4329)
  • UL, CSA, TUV and CE





learn more on in.clear bromine based water sanitization for spas and hot tubs
